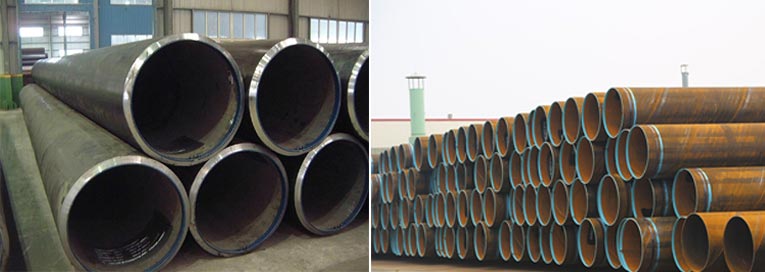

Welded pipe is mainly used for onshore and offshore oil/gas transportation, petrochemical, onshore and offshore structure.
SUNLION capacity is mainly based on China Top Class welded pipe group: CNPC & Sinopec.
The minimum order is 1 piece. All pipes will be 100% NDE tested, large diameter with heavy thickness is our strongest advantage.

Size

Related Standard&Specification:API, DNV, ISO, DEP, EN, ASTM, DIN, BS, JIS, GB

Related Grade: API 5L A-X100, GB/T9711 L190-L690, ASTM A252 GR1~GR3, ASTM A572 GR 50,AS1163 Series.

Available Approved Marine: ABS/DNV ect, EN10204 3.2 MTC

Special Service: Sour Service, Anti-H2S, NACE MR0175/ISO15156

Available Dimension for HSAW Pipe:

Available Length: 100Meters

Outside Diameter		Wall Thickness (mm)
inch	mm	5.4	6.4	7.1	8.7	9.5	10.3	11.1	11.9	14.3	15.9	17.5	19.1	20.6	22.2	25.4
8	219.1	√	√	√
10	273.1	√	√	√	√	√	√
12	323.9	√	√	√	√	√	√	√	√
14	355.6	√	√	√	√	√	√	√	√	√
16	406.6	√	√	√	√	√	√	√	√	√	√
18	457.1	√	√	√	√	√	√	√	√	√	√
20	508	√	√	√	√	√	√	√	√	√	√	√
22	559	√	√	√	√	√	√	√	√	√	√	√
24	610		√	√	√	√	√	√	√	√	√	√	√
26	660		√	√	√	√	√	√	√	√	√	√	√	√
28	711		√	√	√	√	√	√	√	√	√	√	√	√
30	762		√	√	√	√	√	√	√	√	√	√	√	√	√	√
32	813			√	√	√	√	√	√	√	√	√	√	√	√	√
34	864			√	√	√	√	√	√	√	√	√	√	√	√	√
36	914				√	√	√	√	√	√	√	√	√	√	√	√
38	965				√	√	√	√	√	√	√	√	√	√	√	√
40	1016				√	√	√	√	√	√	√	√	√	√	√	√
42	1067				√	√	√	√	√	√	√	√	√	√	√	√
44	1118				√	√	√	√	√	√	√	√	√	√	√	√
46	1168					√	√	√	√	√	√	√	√	√	√	√
48	1219					√	√	√	√	√	√	√	√	√	√	√
50	1270					√	√	√	√	√	√	√	√	√	√	√
52	1321					√	√	√	√	√	√	√	√	√	√	√
54	1372					√	√	√	√	√	√	√	√	√	√	√
56	1422					√	√	√	√	√	√	√	√	√	√	√
58	1473.2					√	√	√	√	√	√	√	√	√	√	√
60	1524					√	√	√	√	√	√	√	√	√	√	√
138	3505.2					√	√	√	√	√	√	√	√	√	√	√

Available Dimension for LSAW Pipe:

Available Length: 2-80Meters

Outside Diameter		Wall Thickness (mm)
inch	mm	6.4	7.1	7.9	8.7	9.5	10.3	11.1	11.9	12.7	14.3	15.9	17.5	18.4	19.1	20.6	22.2	23.8	25.4	27	28.6	30.2	31.8	33.3	34.9	36.5	38.1	40	60	80	100	120
20	508	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√
22	559	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√
24	610	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√
26	660	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√
28	711	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√
30	762	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√
32	813	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√
34	864	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√
36	914	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√
38	965			√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√
40	1016			√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√
42	1067					√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√
44	1118					√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√
46	1168					√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√
48	1219					√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√
50	1270					√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√
52	1321					√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√
54	1372					√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√
56	1422					√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√
58	1473.2											√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√
60	1524											√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√
138	3505.2											√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√	√

Available Dimension for ERW/HFW Pipe:

Available Length: 2-80Meters

Outside Diameter		Wall Thickness (mm)
inch	mm	3.2	4	4.8	6.4	7.1	7.9	8.7	9.5	10.3	11.1	12.7	14.3	15.9
1/2	21.3	√
3/4	26.7	√
1	33.4	√	√
11/4	42.2	√	√
11/2	48.3	√	√
2	60.3	√	√
21/2	73	√	√	√
3	88.9	√	√	√	√	√
31/2	101.6	√	√	√	√	√
4	114.3	√	√	√	√	√	√
5	141.3		√	√	√	√	√	√	√	√
6	168.3		√	√	√	√	√	√	√	√
8	219.1			√	√	√	√	√	√	√	√
10	273.1			√	√	√	√	√	√	√	√
12	323.9			√	√	√	√	√	√	√	√	√
14	355.6				√	√	√	√	√	√	√	√
16	406.4				√	√	√	√	√	√	√	√
18	457.2				√	√	√	√	√	√	√	√	√
20	508				√	√	√	√	√	√	√	√	√	√
22	559				√	√	√	√	√	√	√	√	√	√
24	610				√	√	√	√	√	√	√	√	√	√
26	660				√	√	√	√	√	√	√	√	√	√

Chemical Analysis(%) For Part Standard

Standard	Class	Grade	C	Si	Mn	P	S	V	Nb	Ti
Standard	Class	Grade	max	max	max	max	max	max	max	max
APL 5L ISO 3181	PSL1	L245 or B	0.26	-	1.20	0.030	0.030	-	-	-
		L290 or X42	0.26	-	1.30	0.030	0.030	-	-	-
		L320 or X46	0.26	-	1.40	0.030	0.030	a,b	a,b	b
		L360 or X52	0.26	-	1.40	0.030	0.030	b	b	b
		L390 or X56	0.26	-	1.40	0.030	0.030	b	b	b
		L415 or X60	0.26	-	1.40	0.030	0.030	c	c	c
		L450 or X65	0.26	-	1.45	0.030	0.030	c	c	c
		L485 or X70	0.26	-	1.65	0.030	0.030	c	c	c
	PSL2	L245R or BR	0.24	0.40	1.20	0.025	0.015	d	d	0.04
		L290R or X42R	0.24	0.40	1.20	0.025	0.015	0.06	0.05	0.04
		L245N or BN	0.24	0.40	1.20	0.025	0.015	d	d	0.04
		L290N or X42N	0.24	0.40	1.20	0.025	0.015	0.06	0.05	0.04
		L320N or X46N	0.24	0.40	1.40	0.025	0.015	0.07	0.05	0.04
		L360N or X52N	0.24	0.45	1.40	0.025	0.015	0.10	0.05	0.04
		L390N or X56N	0.24	0.45	1.40	0.025	0.015	0.10	0.05	0.04
		L415N or X60N	0.24	0.45	1.40	0.025	0.015	0.10	0.05	0.04
		L245Q or BQ	0.18	0.45	1.40	0.025	0.015	0.05	0.05	0.04
		L290Q or X42Q	0.18	0.45	1.40	0.025	0.015	0.05	0.05	0.04
		L320Q or X46Q	0.18	0.45	1.40	0.025	0.015	0.05	0.05	0.04
		L360Q or X52Q	0.18	0.45	1.50	0.025	0.015	0.05	0.05	0.04
		L390Q or X56Q	0.18	0.45	1.50	0.025	0.015	0.07	0.05	0.04
		L415Q or X60Q	0.18	0.45	1.70	0.025	0.015	c	c	c
		L450Q or X65Q	0.18	0.45	1.70	0.025	0.015	c	c	c
		L485Q or X70Q	0.18	0.45	1.80	0.025	0.015	c	c	c
		L555Q or X80Q	0.18	0.45	1.90	0.025	0.015	c	c	c
		L625Q or X90Q	0.16	0.45	1.90	0.020	0.010	c	c	c
		L690Q or X100Q	0.16	0.45	1.90	0.020	0.010	c	c	c
		L245M or BM	0.22	0.45	1.20	0.025	0.015	0.05	0.05	0.04
		L290M or X42M	0.22	0.45	1.30	0.025	0.015	0.05	0.05	0.04
		L320M or X46M	0.22	0.45	1.30	0.025	0.015	0.05	0.05	0.04
		L360M or X52M	0.22	0.45	1.40	0.025	0.015	b	b	b
		L390M or X56M	0.22	0.45	1.40	0.025	0.015	b	b	b
		L415M or X60M	0.12	0.45	1.60	0.025	0.015	c	c	c
		L450M or X65M	0.12	0.45	1.60	0.025	0.015	c	c	c
		L485M or X70M	0.12	0.45	1.70	0.025	0.015	c	c	c
		L555M or X80M	0.12	0.45	1.85	0.025	0.015	c	c	c
		L625M or X90M	0.10	0.55	2.10	0.020	0.010	c	c	c
		L690M or X100M	0.10	0.55	2.10	0.020	0.010	c	c	c

Mechanical Properties

Standard	Class	Grade	Yield Strength MPa		Yield Strength MPa		Y.S/T.S
Standard	Class	Grade	min	max	min	max	max
API 5L ISO3183	PSL2	L245R or BR L245N or BN L245Q or BQ L245M or BM	245	450	415	655	0.93
		L290R or X42R L290N or X42N L290Q or X42Q L290M or X42M	290	495	415	655	0.93
		L320N or X46N L320Q or X46Q L320M or X46M	320	525	435	655	0.93
		L360N or X52N L360Q or X52Q L360M or X52M	360	530	460	760	0.93
		L390N or X56N L390Q or X56Q L390M or X56M	390	545	490	760	0.93
		L415N or X60N L415Q or X60Q L415M or X60M	415	565	520	760	0.93
		L450Q or X65Q L450M or X65M	450	600	535	760	0.93
		L485Q or X70Q L485M or X70M	485	635	570	760	0.93
		L555Q or X80Q L555M or X80M	555	705	625	825	0.93
		L625M or X90M L625Q or X90Q	625	775	695	915	0.95
		L690M or X100M L690Q or X100Q	690	840	760	990	0.97

Minimum Impact Energy

Standard	Specified Outside Diameter	Grade	Charp Imapct Test 0℃
Standard	Specified Outside Diameter	Grade	Impact of Pipe Body	Impact of Weld
API 5L ISO3183	D≤762mm	≤L485 or X70	27	27
	D≤762mm	L555 or X80	40	27
	762mm	≤L555 or X80	40	27
	1219mm	≤L415 or X60	40	27
	1219mm	>L415 or X60 ≤L555 or X80	54	27
	>1422mm	≤L415 or X60	40	40
	>1422mm	>L415 or X60 ≤L555 or X80	54	40
